ISO9001 & CE Certified Exporter

CE Certification Electric Heating Panel Exporter & Exporters

Industrial-grade precision thermal systems, high-efficiency ceramic, mica, cast-in, and radiant panel technologies engineered to European Union directives with four decades of factory-direct reliability.

Primary Lineup

Featured Industrial Heating Panels & Systems

Engineered for thermal uniformity, high insulation resistance, and heavy industrial duty cycles in global manufacturing hubs.

Compliance Infrastructure

CE Certification & International Safety Standards

Navigating EU compliance requires verifiable conformance to the Low Voltage Directive (LVD) and Electromagnetic Compatibility (EMC) regulations, mitigating downstream liability for engineering contractors and original equipment manufacturers.

Low Voltage Directive (2014/35/EU)

Our electric heating panels undergo rigorous dielectric breakdown testing, insulation resistance verification at maximum operating temperature, and creepage distance analysis to comply strictly with EN 60335-1 and EN 60519-1 thermal processing safety mandates.

Hi-Pot tested up to 2,500V AC cold insulation test to ensure total ground leakage safety across industrial multi-zone networks.

EMC & Harmonics Protection

Advanced solid-state switching compatibility (Zero-Cross SSR and Phase-Angle SCR) ensures that electromagnetic emissions do not interfere with digital PLC automation, servo drives, or sensitive factory industrial IoT telemetry per EN 61000-6-2/4 standards.

Low magnetic fringing field design reduces inductance losses in heavy current industrial wiring configurations.

RoHS & WEEE Material Integrity

Every element from high-temperature nickel-chromium (NiCr 80/20) resistance wires to magnesium oxide (MgO) insulation and silicone leads complies with EU hazardous substance restrictions, providing zero toxic outgassing during high-temperature baking and thermal ramping.

Complete technical documentation dossiers supplied with batch-coded certificates of conformity for customs verification.
Industrial Base

The Yancheng Heating Cluster: 40 Years of Manufacturing Excellence

Operating under Kangpu Heater (Yancheng Laier Heating Technology Co., Ltd.) since 1986, our factory harnesses China's most mature industrial electric thermal ecosystem to yield unmatched structural value and thermal precision.

Direct Vertical Integration

Complete control over internal metallurgical winding, ceramic sintering, mechanical stamping, casting molds, and robotic laser welding cuts out intermediary markups, slashing lead times by 35% compared to European counterparts.

Real-Mold Pre-Production

Unlike rapid prototyping vendors that construct non-repeatable samples, we cut production tool dies directly for first-article approval, ensuring the pilot run strictly reflects subsequent 10,000-unit continuous manufacturing tolerances.

High Batch Stability

Standardized automated winding machinery avoids resistance variances across heater groups. Resistance tolerances are locked inside ±5%, eliminating thermal hotspots across broad platen surfaces and multi-zone barrels.

Five-Year Full Warranty

A commitment made possible by pure MICA insulation, unadulterated high-temp ceramic blocks, and German-spec resistance alloy windings, backed by serial-level traceability to identify root operating anomalies.

1986
Year Established
100+
Export Destinations
5,000+
Global Enterprises Served
5 YRS
Comprehensive Warranty
Engineering Evaluation

Electric Heating Panel Specification Guide for Procurement Directors

Select optimal materials and design architectures based on operating thermodynamics, mechanical mounting stress, and thermal energy recovery metrics.

Panel / Heater Type Max Operating Temp Watt Density Range Heat Transfer Mode Primary Industrial Use-Case

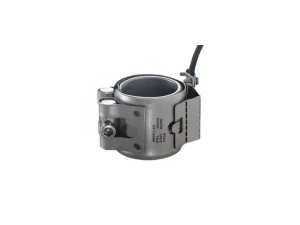

Mica Band & Flat Panels 350°C (662°F) Up to 4.0 W/cm² Conduction Injection molding nozzles, packaging heat-sealing jaws, lab instruments.
Insulated Ceramic Panels 700°C (1292°F) Up to 8.0 W/cm² Conduction + Internal Radiation Extrusion barrels, thermoforming machines, plastic blow molding.
Cast-In Aluminum / Copper 400°C (Al) / 650°C (Cu) Up to 6.5 W/cm² (Al) / 9.0 (Cu) Uniform Pure Conduction Laminators, heavy plastic compounding, extreme thermal shock zones.
Nano Infrared Band Heaters 500°C (932°F) Up to 9.0 W/cm² Directed High-Efficiency Infrared Energy-retrofit extruders, saving up to 30%-40% barrel electricity.
Flexible Silicone/Kapton Heaters 200°C (Silicone) / 260°C (Kapton) Up to 1.5 W/cm² Surface Profile Conduction Complex curvatures, pipe freeze protection, aerospace fluid vessels.
Electromagnetic Induction Panels 450°C (842°F) Custom Calibrated Electromagnetic Eddy Induction Instant clean steam generators, direct metallic shell excitation.
Field Deployment

Worldwide Engineering Support & Local Application Engineering

How our factory guarantees that custom-built heating elements seamlessly interface with local electrical standards, regional control systems, and machinery housings worldwide.

Dual-Voltage Multi-Grid Engineering

We manufacture custom arrays to match regional grid supplies: 110V/208V/240V/480V for North America, 230V/400V for the European Union, and 380V/415V for APAC. Multi-tap heating panels enable easy Delta/Star configuration adjustments.

Thermocouple Hole Precision & Feedback

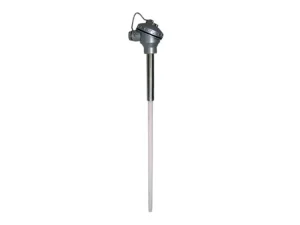

Proper temperature sensing guarantees loop precision. We precisely incorporate internal built-in Type J, Type K, or PT100 RTD sensor pockets, locating thermowells near the heating elements without inducing structural thermal stress or hot spots.

Anti-Vibration & Clamping Hardware

Severe thermal expansion can loosen flat panels from platens, triggering premature burnout. We provide custom spring-loaded tension clamps, low-profile screw tabs, and barrel barrel-lock straps in high-grade 304 or 316 stainless steel.

Industry Frontiers

Emerging Trends in Industrial Electric Heating Panel Technology

The industrial heating market is undergoing an aggressive shift driven by decarbonization, circular economy mandates, and smart manufacturing metrics.

Factory Decarbonization & Electrification

Heavy fossil fuel boilers and fired burners are being rapidly decommissioned. High-output electric heating panels and induction steam boilers eliminate localized carbon emissions, delivering superior thermal efficiency exceeding 95% at point of use.

Aerogel Thermal Insulation Wraps

Modern electric panels integrate nano-porous aerogel backing insulation. By reducing external skin temperatures from 300°C to under 60°C, plants safeguard shop floor personnel and reduce ambient air conditioning HVAC load dramatically.

Predictive Resistance Monitoring

With smart current sensors and edge IIoT gateways, current draw fluctuations indicate early resistance wire oxidation before failure happens, permitting proactive scheduling during routine plant maintenance shutdowns.

Standard Operating Procedure

Seven-Stage Customization Workflow

From mechanical CAD drawings to final batch dispatch, every milestone requires verified sign-offs, guaranteeing zero on-site fitting failures.

STAGE 01

Provide ID Design

Engineers analyze spatial clearances, mechanical clamping requirements, terminal box orientation, and electrical conduit lines.

STAGE 02

Product Customization

Watt density calculation, insulation grade selection, resistance wire gauging, and precise thermal profile modeling.

STAGE 03

Open Real Mold

Real production dies and fixtures are cast and CNC milled rather than handmade, mirroring exact series-production specs.

STAGE 04

Client Confirmation

Pilot samples are physically test-fitted onto machinery platens to verify mechanical lock, ground safety, and thermocouple alignment.

STAGE 05

Sample Modification

Adjusting lead exit angles, strengthening clamping ears, or recalibrating heat flux zones based on pilot heat dissipation data.

STAGE 06

Sample Testing

Dielectric Hi-Pot testing, high-temperature thermal uniformity pyrometry, and continuous cycling before final specification freeze.

STAGE 07

Mass Production & QA

Automated manufacturing, individual barcode assignment for 5-year warranty tracking, reinforced sea/air export packaging.

Direct Answers

Frequently Asked Technical & Commercial Questions

Clear, direct engineering responses to common queries encountered by procurement teams and industrial machinery operators.

Can Kangpu manufacture industrial electric heating panels directly to custom engineering drawings?
Yes. Direct customization represents our foundational operation. Send us your CAD drawings (.STEP, .DWG, .DXF) or OEM physical parts. Our engineering staff verifies dimensions, watt densities, terminal post locations, mounting brackets, and thermowells, producing verified real-mold prototypes prior to bulk manufacturing approval.
What specific certifications accompany your electric heating panel shipments?
Our products feature full CE compliance conforming to the Low Voltage Directive (LVD) 2014/35/EU and Electromagnetic Compatibility (EMC) 2014/30/EU. Shipments include individual batch test reports verifying insulation resistance (>100MΩ under 500V DC) and dielectric withstand test certificates, supported by an ISO 9001 certified manufacturing quality system.
How does a ceramic heating panel compare with a mica heating panel for continuous duty?
Mica panels are extremely low-profile, provide fast thermal rise times, and deliver cost-efficient performance up to 350°C, ideal for injection nozzles and packaging jaws. Ceramic heating panels feature interlocked steatite ceramic blocks that withstand up to 700°C, offer superior internal insulation, minimize radiant heat losses into ambient air, and are the industry benchmark for heavy extrusion and compounding barrels.
What causes premature failure in industrial heating panels, and how does Kangpu prevent it?
The vast majority of failures stem from poor surface contact leading to localized thermal blockages, thermal oxidation of resistance wire leads, or fluid ingress (such as plastic melt or oil). Kangpu counters this using precision ground clamping bands, laser-welded lead connections, ceramic terminal blocks, and custom sealed terminal enclosures rated up to IP65 where required.
What after-sales warranty coverage is provided on exported heating panels?
Kangpu Heater provides an industry-leading 5-year warranty on our industrial heating elements. Each panel bears a permanent laser-marked serial and production batch code. In the rare event of premature degradation, our metallurgical and quality engineers trace the specific alloy batch and assembly log to resolve the root cause while delivering immediate replacements.
What are your export lead times and minimum order quantities (MOQ)?
Because we operate our own tooling shop and automated assembly lines in Yancheng, rapid sampling typically ships in 5 to 7 business days. Batch orders are generally completed within 15 to 20 business days. We support low-volume pilot testing and high-volume OEM annual blanket contracts with flexible MOQ requirements.
Expanded Engineering Catalog

Specialized Industrial Thermal Equipment

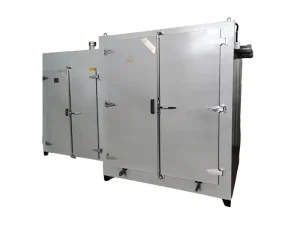

High-specification ovens, boilers, heating furnaces, and custom-formed flexible elements configured for extreme factory requirements.
